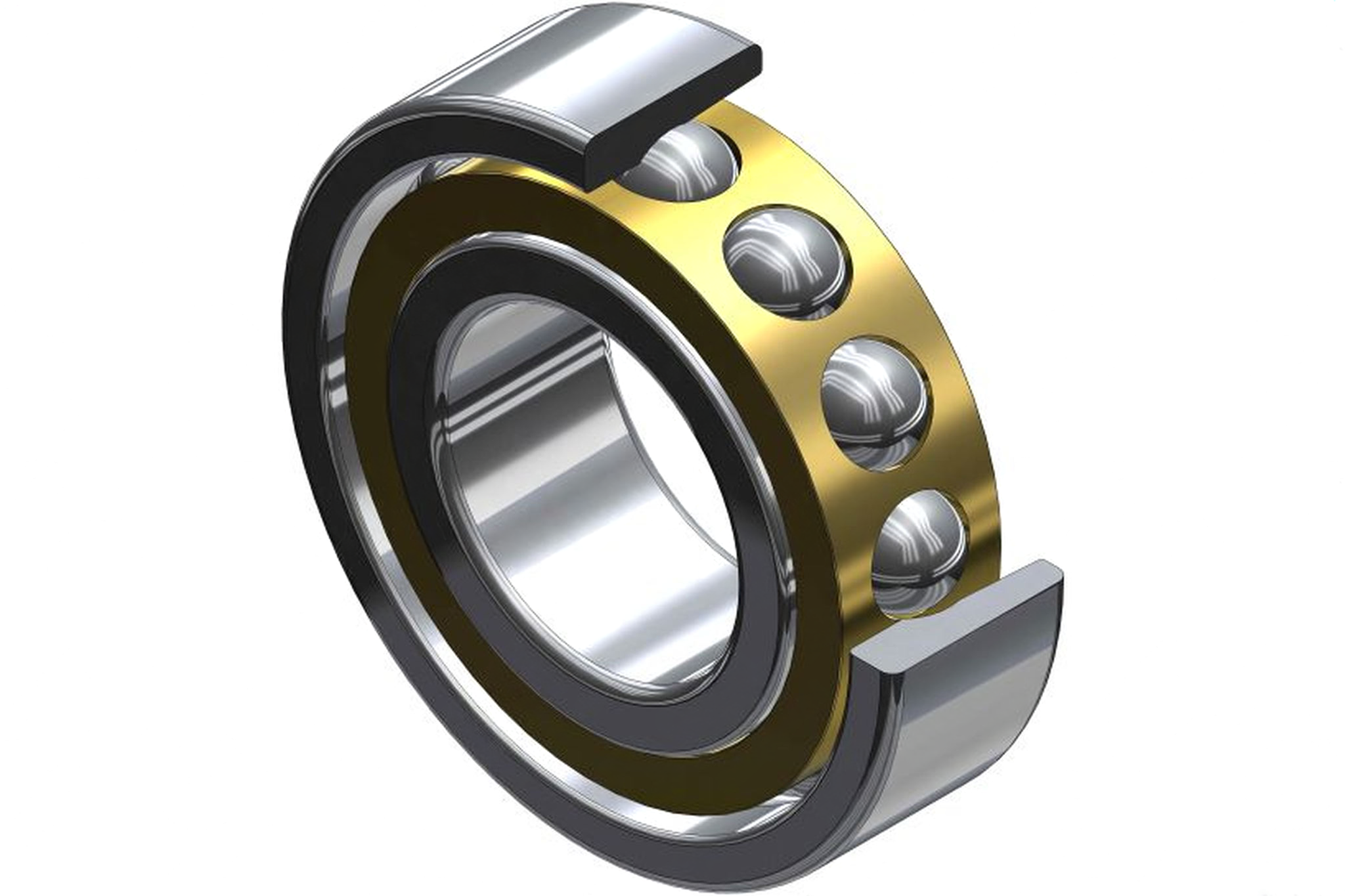

Angular Contact Ball bearing 7003-CM
Description
Bore diameter, mm
17
Outside diameter, mm
35
Overall width, mm
10
Group
Single row angular contact ball bearings
Marking
7003-CM
C – dynamic load, N
7300
C0 – static load, N
4450
Oil lubrication speed, r/min
41000
Grease lubrication speed, r/min
31000
Cage type
M – Machined brass cage, rolling element centred
Modification suffix
C – Contact angle 15°; Single row cylindrical roller bearings with plain outer ring I.D.
Cage material
Brass
Rings material
Chrome steel (bearing steel).
Ring hardness, HRC
58…65
Rolling elements material
Chrome steel (bearing steel).
Rolling element hardness, HRC
58…66
Application
Industrial
Precision class
P0 DIN or Normal according to ISO and GOST; ABEC-1, RBEC-1, K, 4 according to ABMA.
Standards
ISO
Additional information
| Dimensions | |
|---|---|
| Series |
