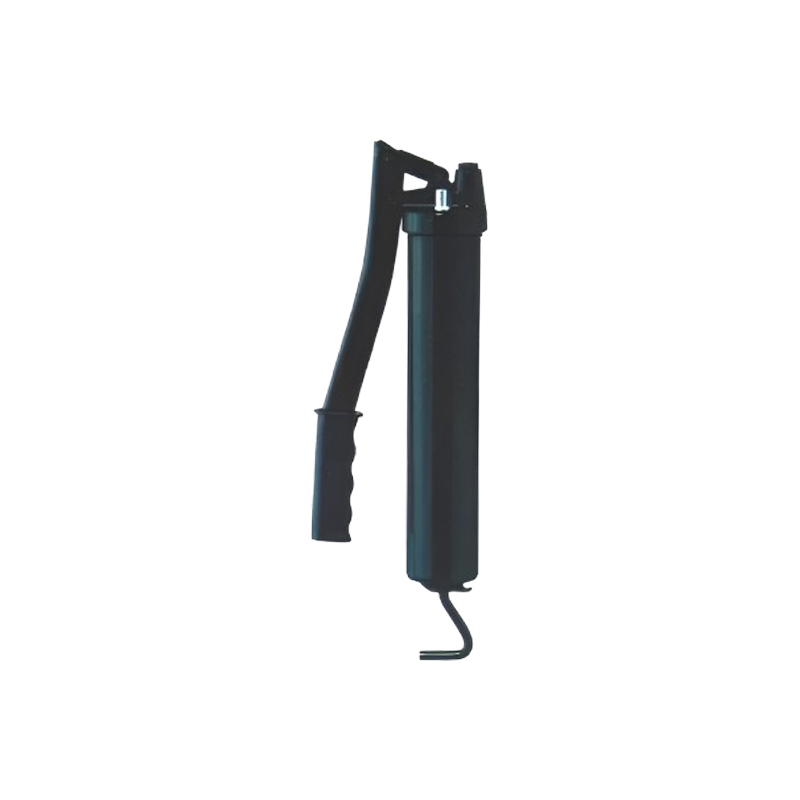

Industrial grease gun 500ml G.1/8 with 300 mm reinforced hose
Description
PRESSOL GERMANY
Technical data
Grease gun connection, pressure-side
through a steel adaptor: G 1/8”
Filling nipple: M 10 x 1
Capacity (cm³): 500
Refilling options: 400 g grease cartridge, DIN 1284, grease filling
system or loose grease using a spatula
Diameter of grease piston (mm): 9
Grease pump piston actuation: manually lever operated
Delivery rate/stroke (cm³): proportional to the manual lever operating
distance, max. 1,6
Lacquering: black
Discharge pressure up to (bar): 400
Burst pressure system (bar): 850
Burst pressure grease gun head (bar): 1200
Operation of push rod: with L-design handle
Cover: loose
Wall thickness of grease gun tube (mm): 1,0
Dimensions LxWxH (mm): 390 x 120 x 66
Weight (kg): 1,25
Specification
● Filling nipple (FN), M 10 x 1 male (12 670)
● Sales package, with Bar code
Special notes
● Operates with greases up to NLGI grade 2 at 20°C
● Plunger with exactly fitting when using bulk grease or cartridge
● Due to the flexibility of the push rod, the plunger can be inserted into damaged
cartridges or cartridges not exactly matching the standard dimensions
● acc. to DIN 1283
● TÜV – certified
● Pump piston, cylinder and O-ring with 6 μ fit (no dummy lubrication)
● No dummy (apparent) lubrication. Sealing system: O-ring and ball valve prevent
grease compressed in the grease gun head from feeding back.
● Performance unchanged after 40.000 actuating cycles
● Separate filling and ventilation valves on grease gun head
● Grease gun head, zinc die casting Z 410
● Sure grip handling due to deep band knurls
● Safe handle on the push rod
● Slip resistant handle on grease gun lever
● Enables even under extreme backpressure, a variable lubrication pressure with
steady effort applied
● Allows lubrication in difficult to reach locations because the smallest lever operation
results in grease being pumped reliably to the lubrication point.
